Sovol SV06 ACE - Klipper Remote Access and AI

If you’ve been using 3D printers for a while, you’ll know there’s a way to remotely control prints, check on progress, and perhaps even optimize your printer’s movement for smoother running.

But how exactly can you do that?

It’s impossible without getting slightly technical, but it’s all worth the faster print times and advanced motion control. The quickest answer is–Klipper firmware.

Klipper is an open-source firmware based on Python developed to handle the advanced changes in 3D printing hardware. Normally, 3D printers come with a standard firmware hardcoded onto the on-board memory and any configuration change requires firmware installation, like solving a labyrinth. Instead, Klipper firmware can be edited, and modified and a simple device restart applies the changes.

It’s compatible with many 3D printers and you can check the complete list here. Klipper pairs with these common printers:

• Creality

• Sovol

• Pursa

• Anycubic

  You have set up Klipper and the Moonraker API correctly, and it is connected to your printer. An interface such as Mainsail/Fluidd is highly recommended.

What Is Remote Access Using Klipper?

Remote access or remote controlling your 3D printer allows you to monitor (in real-time), control, manage print files, and receive updates about your print from a distance. Remote access using Klipper works through a web-based interface requiring your phone or computer and a 3D printer connected to the internet.

That’s slightly unsecure, but there are other ways like port forwarding and bots and then there’s Obico.

Obico offers everything that comes with remote access plus, smart monitoring, AI error detection, print optimization, file management, and cloud-based storage. It’s entirely open-source and you can even set up your own local server and have hybrid access or a fall-back option.

SOVOL SV06 ACE Klipper Integration

Previous Sovol printers like the SV06 are based on a Marlin control board which runs entirely on the printer’s micro-controller. Marlin is the old architecture for 3D printers and faces performance issues because Marlin firmware does not meet the advanced hardware capabilities of printers.

There are ways to upgrade to a Klipper firmware which involves using a Raspberry Pi controller, or a tablet. However, now you can also use Klipper touchscreens such as the one provided by Sovol which simplifies the upgrade.

Sovol SV06 ACE comes with pre-installed Klipper integration, so you don’t have to go through the Raspberry Pi guides found on the internet for your Sovol printer.

Start Here: Klipper Remote Access Using Obico For Sovol SV06 Ace

After setting up your printer and connecting it with your computer, you can follow this simple guide to set up remote control for Sovol SV 06 Ace.

System Requirements

Klipper firmware comes pre-installed and Obico is a cloud-based software. So, there’s no rugged system requirement to set up your remote access. After setting up Obico, you can even use the mobile app to control your printer.

• You have set up Klipper and the Moonraker API correctly, and it is connected to your printer. An interface such as Mainsail/Fluidd is highly recommended.
• A webcam is set up for your printer and connected

Obico Setup Using Cloud

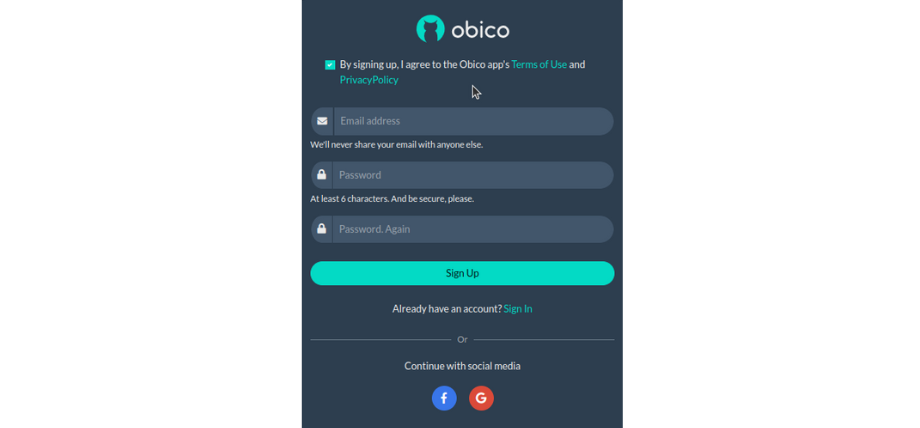

Step 1: Creating a Free Account

You can start by creating a free account on Obico. \ To do that, click on “Get Started” in the top right corner.

• Fill in your credentials or
• Sign in using your Google account.

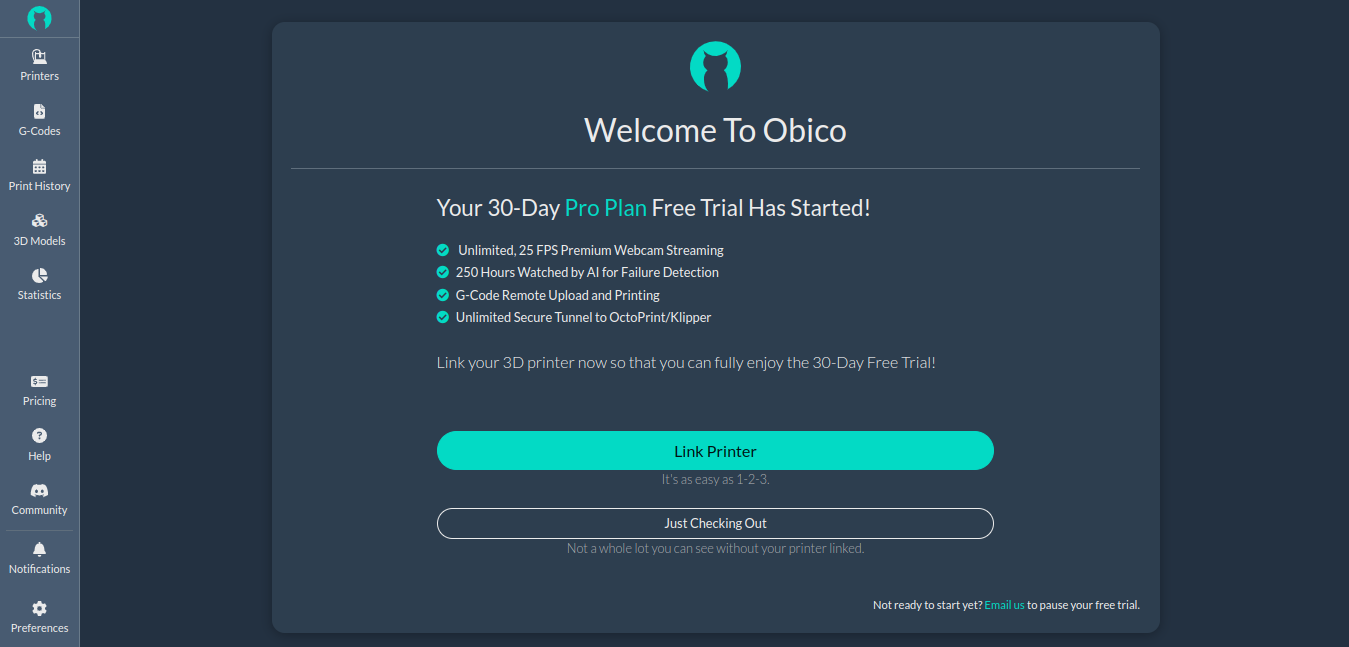

After Signing In

You’ll see the following page, reminding you about your trial. Don’t worry, you won’t be asked to pay for anything.

A trial allows you to utilize all the features of Obico with your 3D printer without paying. You can test out different features from the sidebar and access community resources but the real fun starts when you connect your 3D printer using the “Link Printer” button.

Step 2: Link Printer

For Sovol SV 06 Ace, click on “Pre-installed Klipper Printer”.

Now Obico will automatically scan your connected printer.

Step 3: Manual Linking

If the auto-connection to your printer fails, you can also use manual linking. Simply click on the Switch to Manual Linking

On the next prompt, there are instructions to connect using your printer's interactive screen.

Step 4: Update Your SV06 To The Latest Firmware (Skippable)

^{Courtesy of sovol3d}

Check if your printer firmware is up-to-date.

• Navigate to "System"
• Then, "Device Information"
• Tap the "OTA" button if it shows a red dot which means you are updating it to the latest firmware.
• If the latest version is installed you can press "OK"

^{Courtesy of sovol3d}

Step 5: Set up Wifi On Your Printer

• Navigate to "Network"
• Connect to your home network.

Step 6: Connect to Obico From System Settings

^{Courtesy of sovol3d}

• Navigate to System again
• Find the Obico menu in the system

Step 7: Use The Obico App On Your Phone To Scan The QR Code

^{Courtesy of sovol3d}

Follow the onboarding instructions and complete your Obico setup for Sovol SV06 Ace.

If you are unable to connect to your printer using the first method you can use the second method which is slightly more technical but works with even older Sovol models and firmware.

What Obico for Klipper Offers

Here, we'll explore the array of features and benefits that Obico for Klipper brings to the table, enhancing your Sovol SV06 Ace 3D printing experience.

1. Full Mainsail/Fluidd Remote Access

   Obico for Klipper provides you with complete remote access to your Sovol SV06 Ace 3D printer through the Mainsail or Fluidd interface. This means you can control and monitor your printer from anywhere, whether you're in the same room or miles away.



2. AI Failure Detection

   The power of artificial intelligence is at your fingertips. Obico's AI system actively monitors your 3D printing process, detecting potential issues and failures in real time. It's like having a vigilant assistant that ensures your prints come out flawlessly.



3. Mobile App for iOS and Android

   Obico offers a user-friendly mobile app for both iOS and Android devices. This means you can conveniently manage and keep tabs on your Sovol SV06 Ace printer using your smartphone or tablet, making 3D printing more accessible and flexible.



4. Comprehensive 3D Printer Status Notifications

   Stay informed about your print job's progress and your printer's condition. Obico provides detailed status notifications, ensuring you're always up-to-date on your 3D printing projects.

5. Push Notifications

   Receive push notifications directly to your mobile device. Obico keeps you in the loop, alerting you to any changes or important events related to your prints.

6. Email Alerts

   For those who prefer email notifications, Obico has you covered. Get essential updates and alerts sent straight to your inbox, ensuring you never miss a beat when it comes to your 3D printing tasks.

7. Discord Integration

   Obico seamlessly integrates with Discord, a popular communication platform. This integration allows you to receive notifications and updates about your prints through your Discord server, keeping your 3D printing community in the know.

Troubleshooting "Buster-backports Release no longer has a Release file" Error

Continue to this part if you only face this error in the image below when you run the ./install.sh command to install Obico in your Makerbase 3D printer.

###### Installing required system packages... You may be prompted to enter password.
[sudo] password for mks:
Hit:1 http://security.debian.org buster/updates InRelease
Hit:2 http://deb.debian.org/debian buster InRelease
Hit:3 http://deb.debian.org/debian buster-updates InRelease
Ign:4 http://deb.debian.org/debian buster-backports InRelease
Err:5 http://deb.debian.org/debian buster-backports Release
404 Not Found [IP: 199.232.82.132 80]
Reading package lists... Done
E: The repository 'http://deb.debian.org/debian buster-backports Release' does not have a Release file.
N: Updating from such a repository can't be done securely, and is therefore disabled by default.
N: See apt-secure(8) manpage for repository creation and user configuration details.
mks@mkspi:~/moonraker-obico$

Just follow our easy step-by-step guide for simply solving this error so that you can continue your installation process just click here!

The Power of Remote Access and AI

Now, let's talk about something truly revolutionary. Sovol SV06 Ace Series printers work seamlessly with Klipper software. What does this mean for you? It means you can link your printer to Obico, unlocking the potential for remote access and AI monitoring features.

With remote access, you can control and monitor your 3D printer from anywhere in the world. Whether you're at home, in the office, or on the go, you have the power to manage your prints with ease.

AI monitoring takes your 3D printing experience to the next level. Obico's AI capabilities allow you to keep a close eye on your prints, making sure everything is running smoothly. It can detect and alert you to potential issues, ensuring that your prints turn out flawlessly.

Why You Need Remote Access

In today's fast-paced world, efficiency is key, and that includes your 3D printing endeavors. Here are three compelling reasons why remote access to your Sovol SV06 3D Printer can greatly benefit you:

1. Streamlining Your 3D Printing Workflow:

   • Remote access allows you to initiate, monitor, and manage your 3D printing tasks from virtually anywhere. Whether you're at home, in the office, or on the go, you can start or pause a print, adjust settings, and even schedule print jobs remotely. This means you can optimize your printing schedule and make the most of your precious time.

2. The Benefits of Monitoring and Control Anywhere:

   • With remote access, you gain real-time insights into your print progress. Keep an eye on your prints through live camera feeds and access crucial information such as print status, temperature, and filament usage from the convenience of your smartphone, tablet, or computer. This level of control empowers you to ensure the success of your prints, even when you're miles away.

3. Troubleshooting Made Easy with Remote Access:

   • Sometimes, unexpected issues can arise during a 3D printing job. Remote access provides you with the tools to address these challenges promptly. You can adjust settings, pause or cancel prints, or even diagnose and resolve problems remotely. This capability minimizes downtime and reduces the frustration of encountering print failures.

Conclusion

In conclusion, Obico for Klipper is your gateway to elevating your Sovol SV06 3D printing journey. By seamlessly integrating remote access and AI-powered monitoring, Obico enhances not only the convenience but also the precision of your 3D printing endeavors.

With the ability to manage your printer from anywhere, be it through your computer, mobile device, or even Discord, Obico brings 3D printing into the future of convenience. Real-time status notifications, failure detection, and multiple notification channels ensure that you're always in control and well-informed.

As you embark on your 3D printing adventures with the Sovol SV06 Ace, Obico for Klipper becomes your trusted companion, making the process more accessible, efficient, and enjoyable. Say goodbye to limitations and hello to the future of 3D printing convenience with Obico.
